Component Products, Inc. carries an extensive inventory of accessories and hardware that are used in completing various traffic and street lighting jobs.

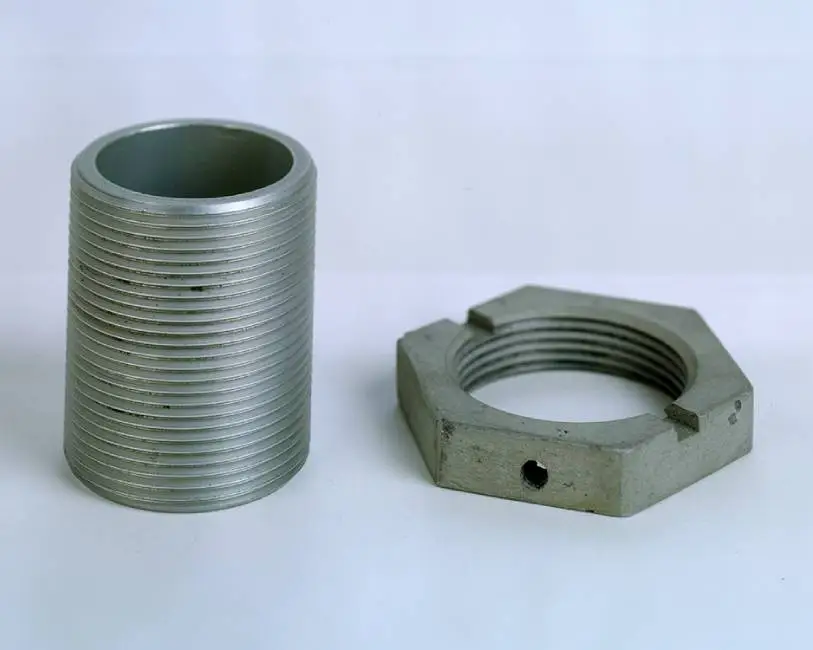

Nipples
| Diameter | 1 1/2″ |
|---|---|
| Materials | Aluminum, Steel |
| Schedules | 40 & 80 |
| Threads | NPT, NPS |
| Lengths | 1 1/2″ L to 96″ |

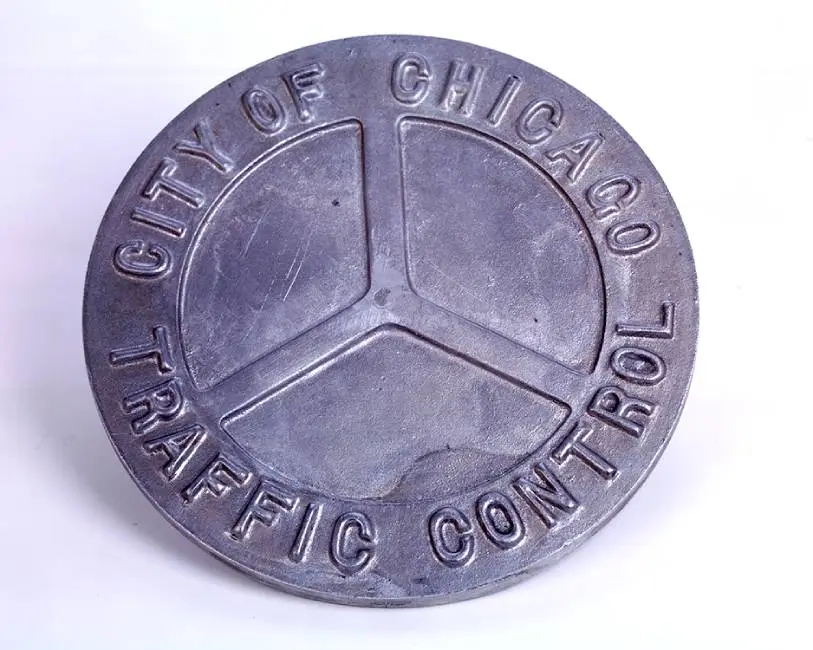

Pole Caps
- 3″, 4″, & 6″ Poles
TCT (Traffic Control Technology) Signal Framework Parts
- Elbows
- Tees
- Hub Plates
- Wire Outlets

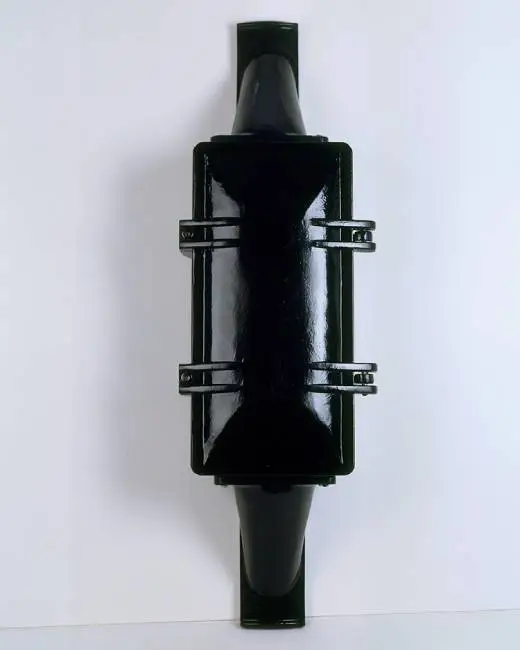

- Hangers

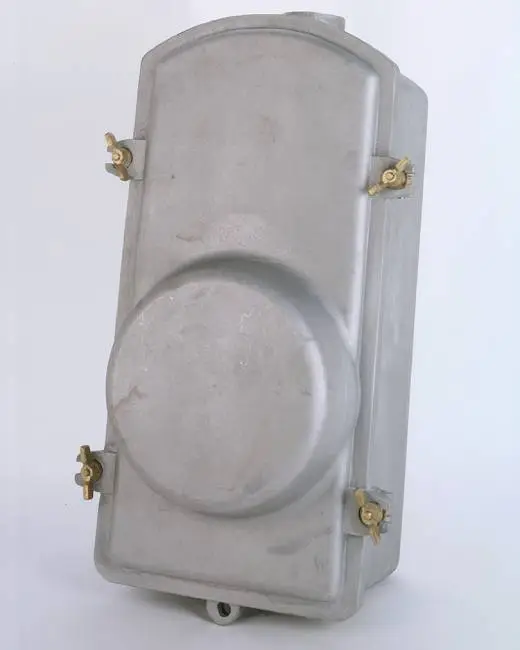

Cast Aluminum Cabinets For Decorative Applications

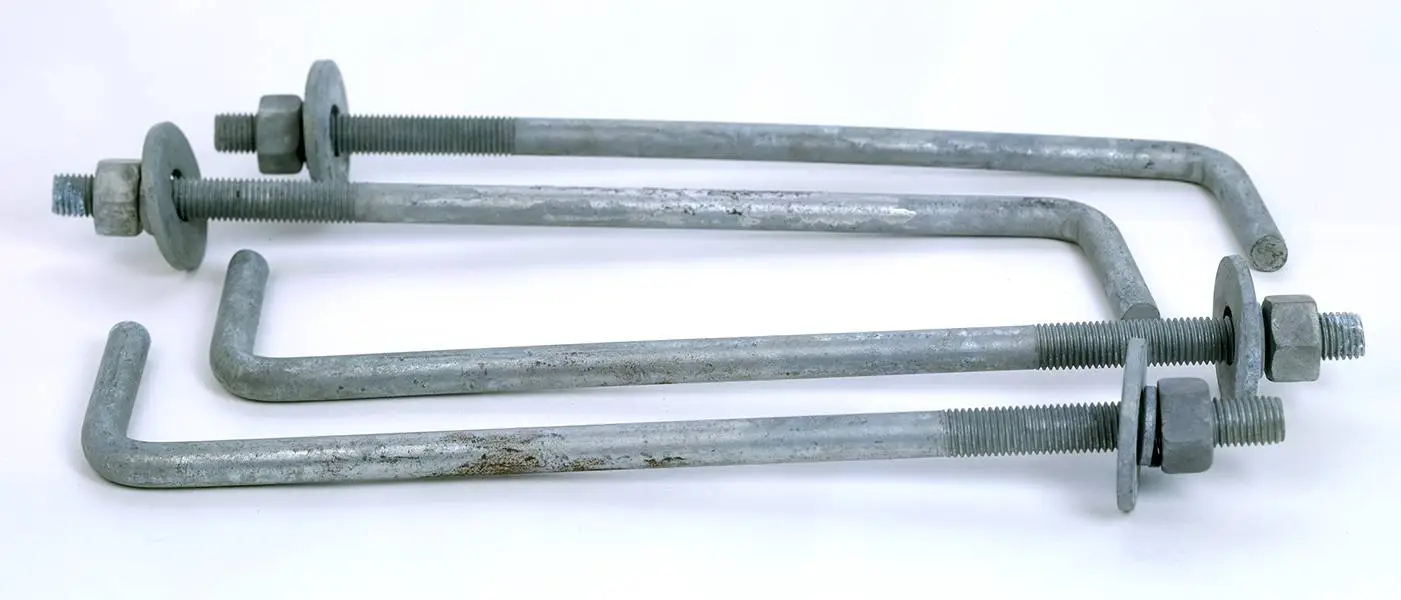

Anchor Bolts
Hot Dipped Galvanized A36
| Minimum Yield | 55,000 |
|---|---|
| Diameters | 1/2″ – 1 3/4″ |
| Lengths | 12″ – 84″ |
| Specials | 316 & 304SS |
Hex Bolts
Hot Dipped Galvanized
| Diameters | 3/4″ – 1 1/4″ |
|---|---|
| Lengths | 4″ – 8″ |
| Materials | GR2, 5, 8 |
| Specials | 316 & 304SS |
Heavy Hex Nuts, Flat Washers, & Lock Washers for above
Lock Nuts
| Material | Iron, Aluminum, Steel |
|---|
Gaskets
| Material | Nylon, Neoprene |
|---|
Completed Assemblies & Fabricated Designs
Cable Duct Housing
- 3″ XH T&C 5′ & 10′ L
- 4″ XH T&C 5′ & 10′ L
- 5″ XH T&C 5′ & 10′ L
| PRODUCT NO. | DESCRIPTION |
|---|---|
| CPI-1.25 HX BLT | 1.25 X 4 HARDWARE SET |
| CPI-1.5CN | 1 1/2 CHASE NIPPLE |
| CPI-AB-17 | H.D.G. ¾ X 17 BOLTS |
| CPI-AB-18 | H.D.G. ¾ X 18 BOLTS |
| CPI-AD | ALUMINUM DOOR |
| CPI-ALN | ALUMINUM LOCK NUT |
| CPI-ALN-SS | ALUMINUM LOCK NUT WITH SET SCREW |
| CPI-APC-1 | 4″ ALUMINUM POLE CAP |
| CPI-DAS-1 | SQUARE DOOR – ALUMINUM |
| CPI-DPS-1 | SQUARE DOOR – PLASTIC |
| CPI-GLN | GALVANIZED LOCK NUT |
| CPI-KL5772 | CAST ALUMINUM NIPPLE |
| CPI-NYL-GSKT | NYLON GASKET |
| CPI-T-11S1 | 1 ½ X 54 X 6 AASHTO ANCHOR BOLT |
| CPI-T-11S10A | 1 ¼ HEX GALVANIZED NUT A563 |
| CPI-T-11S10B | 1 ¼ FLAT WASHER GALVANIZED F436 |
| CPI-T-11S10C | 1 ¼ LOCK WASHER GALVANIZED F436 |
| CPI-T-11S10FG | 1 ¼ X 42 X 6 A687 FULL GALV ANCHOR BOLT |
| CPI-T-11S10J | 1 ¼ X 56 X 4 CHICAGO SPEC ANCHOR BOLT |
| CPI-T-11S10K | 1 ¼ X 54 X 6 CHICAGO SPEC ANCHOR BOLT |
| CPI-T-11S11 | 1 ¾ X 84 X 6 AASHTO ANCHOR BOLT |
| CPI-T-11S11A | 1 ¾ HEX GALVANIZED NUT A563 |
| CPI-T-11S11B | 1 ¾ FLAT WASHER GALVANIZED F436 |
| CPI-T-11S11C | 1 ¾ LOCK WASHER GALVANIZED F436 |
| CPI-T-11S13 | ½ X 12 X 2 AASHTO ANCHOR BOLT |
| CPI-T-11S13A | ½ HEX GALVANIZED NUT A563 |
| CPI-T-11S13B | ½ FLAT WASHER GALVANIZED F436 |
| CPI-T-11S13C | ½ LOCK WASHER GALVANIZED F436 |
| CPI-T-11S15 | 5/8 X 15 X 3 AASHTO ANCHOR BOLT |
| CPI-T-11S15-1 | 5/8 X 18 CHICAGO SPEC ANCHOR BOLT |
| CPI-T-11S15A | 5/8 HEX GALVANIZED NUT A563 |
| CPI-T-11S15B | 5/8 FLAT WASHER GALVANIZED F436 |
| CPI-T-11S1A | 1 ½ HEX GALVANIZED NUT A563 |
| CPI-T-11S1B | 1 ½ FLAT WASHER GALVANIZED F436 |
| CPI-T-11S1C | 1 ½ LOCK WASHER GALVANIZED F436 |
| CPI-T-11S1F | 1 ½ X 56 X 4 CHICAGO SPEC ANCHOR BOLT |
| CPI-T-11S22FG | 1 X 36 X 4 A687 FULL GALV ANCHOR BOLT |
| CPI-T-11S2A | 1 HEX GALVANIZED NUT A563 |
| CPI-T-11S2B | 1 FLAT WASHER GALVANIZED F436 |
| CPI-T-11S2C | 1 LOCK WASHER GALVANIZED F436 |
| CPI-T-11S2H | 1 X 56 X 4 CHICAGO SPEC ANCHOR BOLT |
| CPI-T-11S3FG | 1 X 60 X 4 A687 FULL GALV ANCHOR BOLT |
| CPI-T-11S8A | ¾ HEX GALVANIZED NUT A563 |
| CPI-T-11S8B | ¾ X 2 FLAT WASHER GALVANIZED F436 |
| CPI-T-11S8C | ¾ LOCK WASHER GALVANIZED F436 |
| CPI-T-11S8D | 5/8 LOCK WASHER GALVANIZED F436 |
| CPI-T-11S9 | ¾ X 17 X 3 AASHTO ANCHOR BOLT |
| CPI-T-11S9F | ¾ X 24 X 6 CHICAGO SPEC ANCHOR BOLT |
| CPI-TL3301 | POLE PLATE |
| CPI-TL4011-SLPT | 1 ½ ALUMINUM SLIP TEE |

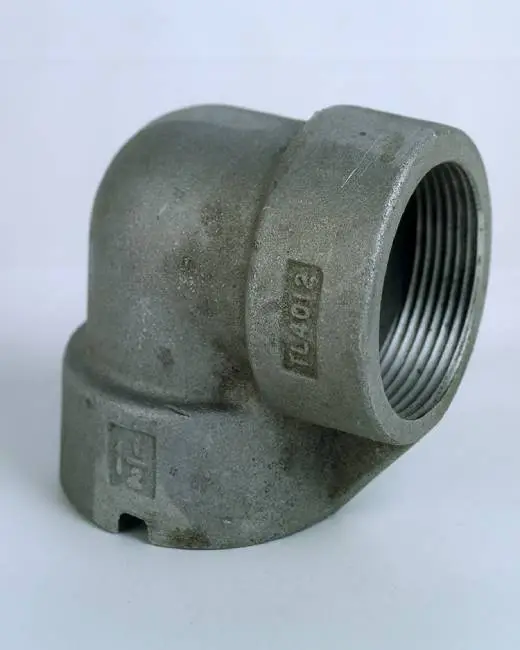

| CPI-TL4012 | ALUMINUM 90 DEGREE ELBOW |

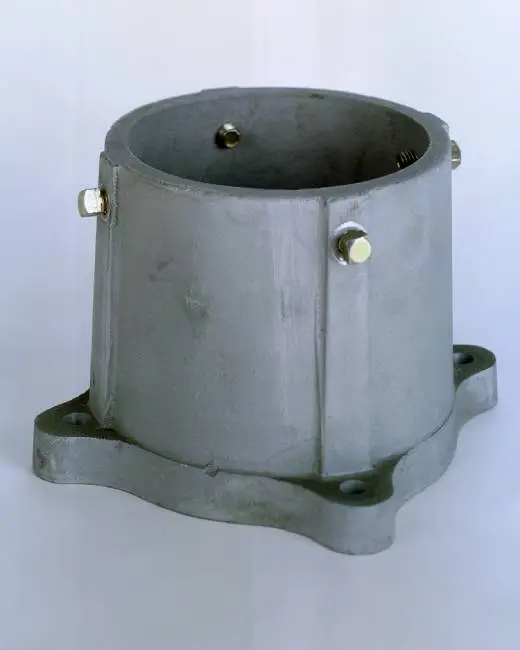

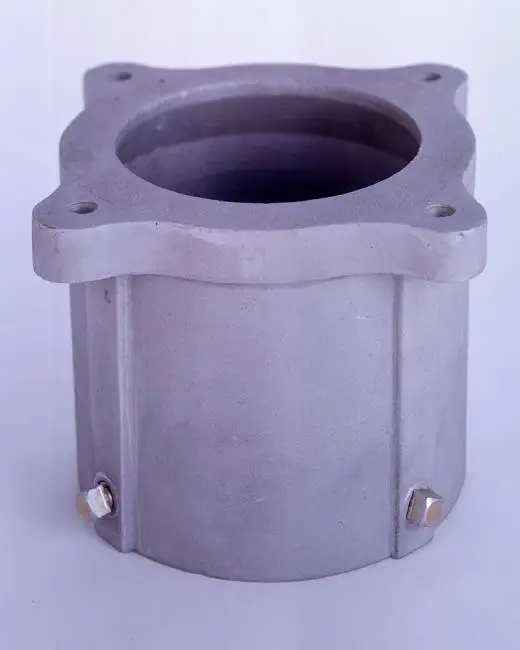

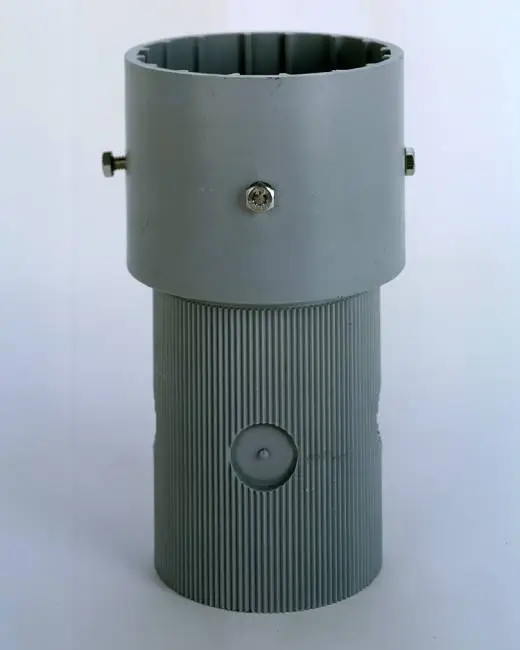

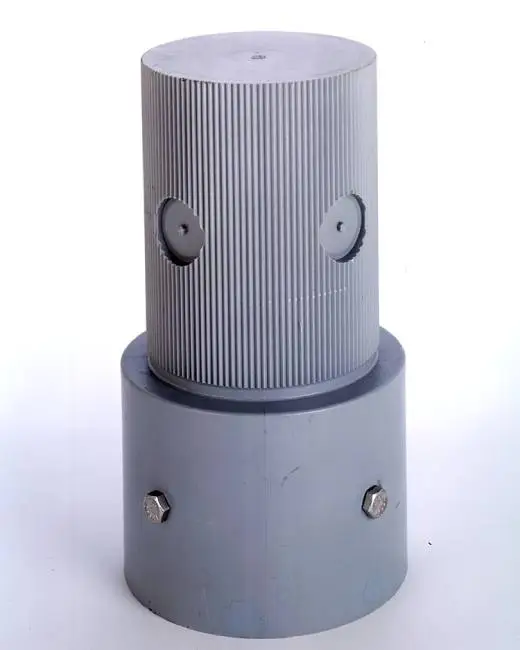

| CPI-TL6712-SLPT | CAST ALUMINUM SLIPFITTER |
